Interface: City of Cleveland TOC - Cleveland Transit Dispatch Center

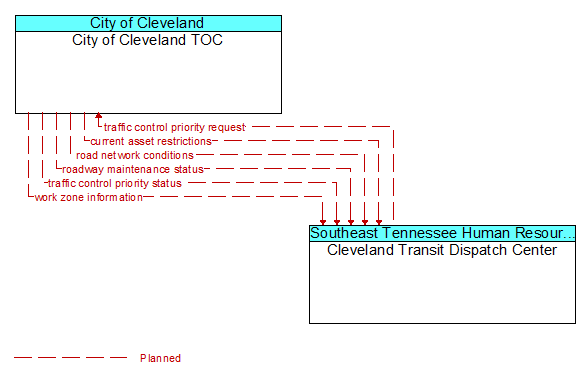

City of Cleveland TOC to Cleveland Transit Dispatch Center Interface Diagram

Architecture Flow Definitions

current asset restrictions  (Planned)  Applicable ITS Standards

Restrictions levied on transportation asset usage based on infrastructure design, surveys, tests, or analyses. This includes standard facility design height, width, and weight restrictions, special restrictions such as spring weight restrictions, and temporary facility restrictions that are imposed during maintenance and construction.

road network conditions  (Planned)  Applicable ITS Standards

Current and forecasted traffic information, road and weather conditions, and other road network status. Either raw data, processed data, or some combination of both may be provided by this architecture flow. Information on diversions and alternate routes, closures, and special traffic restrictions (lane/shoulder use, weight restrictions, width restrictions, HOV requirements) in effect is included along with a definition of the links, nodes, and routes that make up the road network.

roadway maintenance status  (Planned)  Applicable ITS Standards

Summary of maintenance fleet operations affecting the road network. This includes the status of winter maintenance (snow plow schedule and current status).

traffic control priority request  (Planned)  Applicable ITS Standards

Request for signal priority at one or more intersections along a particular route.

traffic control priority status  (Planned)  Applicable ITS Standards

Status of signal priority request functions at the roadside (e.g. enabled or disabled).

work zone information  (Planned)  Applicable ITS Standards

Summary of maintenance and construction work zone activities affecting the road network including the nature of the maintenance or construction activity, location, impact to the roadway, expected time(s) and duration of impact, anticipated delays, alternate routes, and suggested speed limits. This information may be augmented with images that provide a visual indication of current work zone status and traffic impacts.
