Interface: Municipal TOC - Municipal Traffic Signals

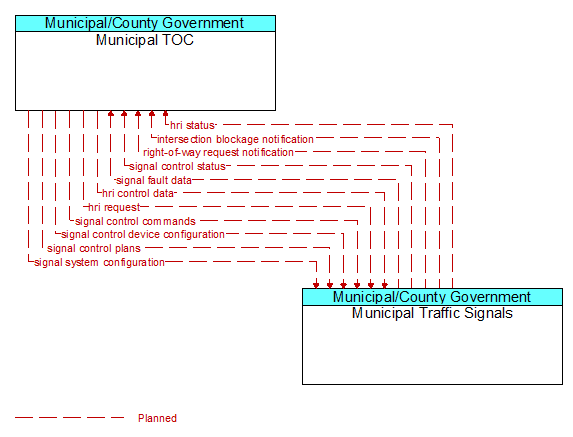

![Municipal TOC to Municipal Traffic Signals Interface Diagram](../../images/ifs/if14-17.gif)
Architecture Flow Definitions
hri control data (Planned) Applicable ITS Standards
Data required for HRI information transmitted at railroad grade crossings and within railroad operations.
hri request (Planned) Applicable ITS Standards
A request for highway-rail intersection status or a specific control request intended to modify HRI operation.
hri status (Planned) Applicable ITS Standards
Status of the highway-rail intersection equipment including both the current state or mode of operation and the current equipment condition.
intersection blockage notification (Planned) Applicable ITS Standards
Notification that a highway-rail intersection is obstructed and supporting information.
right-of-way request notification (Planned) Applicable ITS Standards
Notice that a request has occurred for signal prioritization, signal preemption, pedestrian call, multi-modal crossing activation, or other source for right-of-way.
signal control commands (Planned) Applicable ITS Standards
Control of traffic signal controllers or field masters including clock synchronization.
signal control device configuration (Planned) Applicable ITS Standards
Data used to configure traffic signal control equipment including local controllers and system masters.
signal control plans (Planned) Applicable ITS Standards
Traffic signal timing parameters including minimum green time and interval durations for basic operation and cycle length, splits, offset, phase sequence, etc. for coordinated systems.
signal control status (Planned) Applicable ITS Standards
Operational and status data of traffic signal control equipment including operating condition and current indications.
signal fault data (Planned) Applicable ITS Standards
Faults from traffic signal control equipment.
signal system configuration (Planned) Applicable ITS Standards
Data used to configure traffic signal systems including configuring control sections and mode of operation (time based or traffic responsive).
